Game Dude's

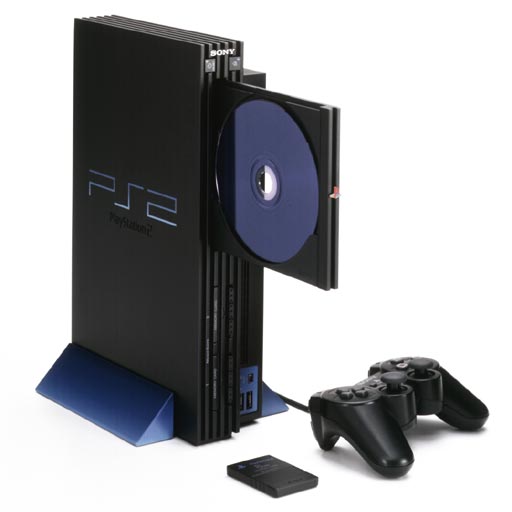

PlayStation 2 System Specs:

CPU:                                                 Complete 128-bit Emotion Engine

System Clock:                                    294.912 MHz

Cache Memory:                                  Instruction: 16KB, Data: 8KB + 16KB (ScrP)

Main Memory:                                    Direct Rambus (Direct RDRAM)

Memory Size:                                     32MB

Memory Bus Bandwidth:                     3.2GB per second

Co-processor:                                    FPU (Floating Point Unit)
                                                         Floating Point Multiply Accumulator x 1
                                                         Floating Point Divider x 1

Vector Units:                                      VU0 and VU1
                                                         Floating Point Multiply Accumulator x 9
                                                         Floating Point Divider x 3

Floating Point Performance:               6.2 GFLOPS

3D CG Geometric
Transformation                                  66 million polygons per second

Compressed Image Decoder:            MPEG2

Graphics:                                        Graphics Synthesizer

Clock Frequency:                              147.456MHz

Embedded DRAM:                            4MB

DRAM Bus bandwidth:                       48GB per second

DRAM Bus width:                              2560 Bits

Pixel Configuration:                            RGB: Alpha: Z Buffer (24:8:32)

Polygon Drawing Rate:                      75 million polygons per second

Screen Resolution:                            Variable from 256 x 224 to 1280 x 1024

Sound:                                             SPU2 and CPU

Number of Voices:                             ADPCM: 48ch on SPU2 plus definable, software programmable voices

Sound Memory:                                 2MB

Output Frequency:                             Variable up to 48 KHz (DAT quality)

IOP:                                                 I/O Processor

CPU Core:                                        PlayStation (current) CPU

Clock Frequency:                              33.8688MHz or 36.864MHz (Selectable)

IOP Memory:                                    2MB

Sub Bus:                                           32-bit

Interface Types:                                IEEE1394 (FireWire), Universal Serial
                                                        Bus (USB) x 2
                                                        Controller Port x 2 , Memory Card x 2

Disc Device:                                     CD-ROM and DVD-ROM

Device Speed                                    CD-ROM 24 times speed

                                                        DVD-ROM 4 times speed

New Features:                                 Drive bay (for 3.5” hard disc drive)

(North American Model)

                                                        Expansion unit (for network interface)

                                                        DVD-Video playback built into the hardware,
                                                        no Memory Card required
